Precision current source IC with 1% accuracy, capable of sourcing up to 200mA. Operates from a 1.2V to 40V input voltage range. Features a compact TSOT package, ideal for space-constrained applications. This lead-free and RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
PackageTSOT
Quick Jump:
Technical Specifications
Analog Devices LT3092ETS8#TRMPBF technical specifications.
General
Accuracy
1%
Package/Case
TSOT
Lead Free
Lead Free
Length
2.9mm
Max Input Voltage
40V
Min Input Voltage
1.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Operating Supply Current
300uA
Output Current
200mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3092ETS8#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3092ETS8#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

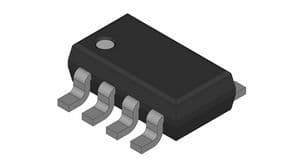

Product Images
