Programmable current source IC featuring 1% accuracy and a maximum output current of 200mA. Operates with a wide input voltage range from 1.2V to 40V, consuming a low 300µA operating supply current. Packaged in a TO-261-4 (SOT223) format, this RoHS compliant component is supplied on tape and reel for efficient assembly. Suitable for applications requiring precise current control across a broad temperature range of -40°C to 125°C.
PackageTO-261-4
Quick Jump:
Technical Specifications
Analog Devices LT3092IST#TRPBF technical specifications.
General
Accuracy
1%
Package/Case
TO-261-4
Max Input Voltage
40V
Min Input Voltage
1.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Operating Supply Current
300uA
Output Current
200mA
Package Quantity
2000
Packaging
Tape and Reel
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3092IST#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3092IST#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

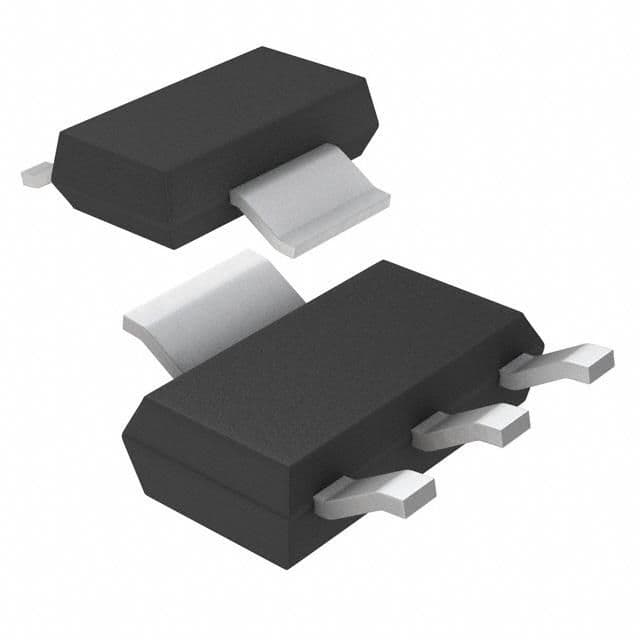

Product Images
