Dual LED driver IC with 1.5A output current per channel, capable of driving up to 15V output voltage. Features a 2MHz switching frequency and operates from a 4V to 36V input voltage range. Packaged in a 20-lead TSSOP with dimensions of 6.6mm length, 4.5mm width, and 1.05mm height. Suitable for applications requiring efficient LED illumination, with a wide operating temperature range of -40°C to 85°C.
Frequency2MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices LT3475EFE#PBF technical specifications.
General
Package/Case
TSSOP
Frequency
2MHz
Height
1.05mm
High Level Output Current
50uA
Lead Free
Lead Free
Length
6.6mm
Low Level Output Current
50uA
Max Input Voltage
36V
Min Input Voltage
4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
4V
Number of Outputs
2
Number of Segments
2
Operating Supply Voltage
24V
Output Current
1.5A
Output Voltage
15V
Package Quantity
74
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3475EFE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3475EFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

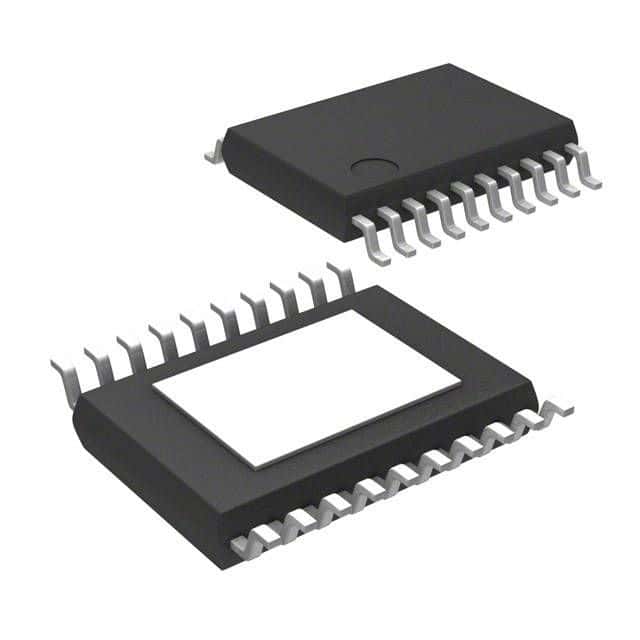

Product Images
