The LT3483IDC#TRPBF is a single-output linear regulator from Analog Devices with an adjustable output voltage of -38V and an output current of 200mA. It is available in a DFN package and is RoHS compliant. The device operates over a temperature range of -40°C to 125°C. It is not a synchronous rectifier and is suitable for use in a variety of applications requiring a stable and adjustable voltage source.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3483IDC#TRPBF technical specifications.
General
| Package/Case | DFN |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 200mA |
| Output Type | Adjustable |
| Output Voltage | -38V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3483IDC#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3483IDC#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

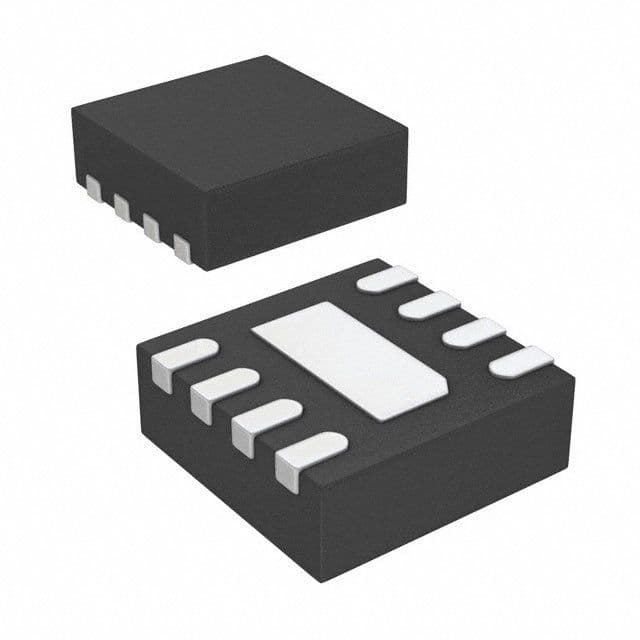

Product Images
