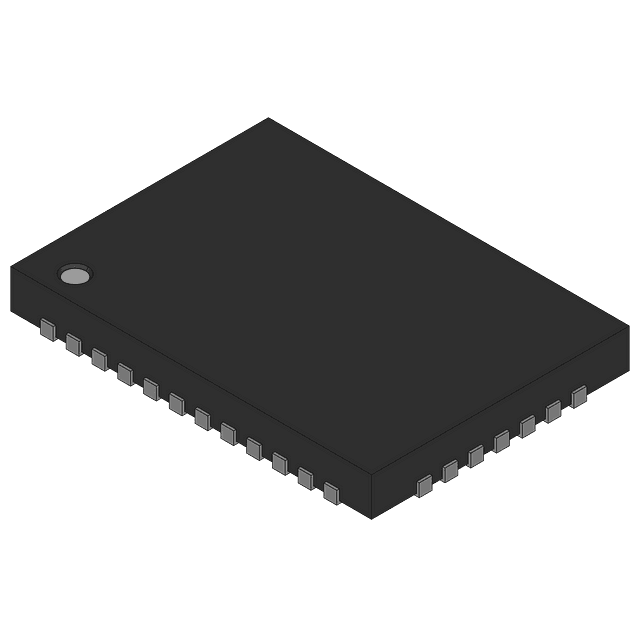

LT3507IUHF#PBF

4-Output DC/DC Controller, 36V In, 2.4A Out, QFN

Quad DC/DC buck and linear regulator IC featuring adjustable output voltage up to 32.4V and a maximum output current of 2.4A per channel. Operates from a 4V to 36V input voltage range with a 36V operating supply voltage. Housed in a compact 7mm x 7mm x 0.7mm QFN package, this positive polarity component offers four independent outputs and a quiescent current of 7.5mA. Suitable for applications requiring efficient power management across a wide temperature range of -40°C to 125°C.

PackageQFN

PolarityPositive

Quick Jump:

Technical Specifications

Analog Devices LT3507IUHF#PBF technical specifications.

General

Package/Case	QFN
Height	0.7mm
Length	7mm
Max Input Voltage	36V
Min Input Voltage	4V
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	2.4A
Number of Outputs	4
Operating Supply Voltage	36V
Output Type	Adjustable
Output Voltage	32.4V
Package Quantity	52
Packaging	Rail/Tube
Polarity	Positive
Quiescent Current	7.5mA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Voltage - Output 1	32.4V
Voltage - Output 2	32.4V
Voltage - Output 3	32.4V
Width	7mm
