Buck-Boost LED Driver IC with 3V to 30V input voltage range and 45V/2.3A output capability. Features a 2.5MHz switching frequency and a single output. Packaged in a 16-lead TSSOP with dimensions of 5.1mm (L) x 4.5mm (W) x 0.95mm (H). Operates across a temperature range of -40°C to 125°C and is RoHS compliant.
Frequency2.5MHz
PackageTSSOP
Current10mA
Quick Jump:
Technical Specifications
Analog Devices LT3518EFE#PBF technical specifications.
General
Package/Case
TSSOP
Frequency
2.5MHz
Height
0.95mm
Lead Free
Lead Free
Length
5.1mm
Max Input Voltage
30V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
10mA
Max Supply Voltage
30V
Min Supply Voltage
3V
Number of Outputs
1
Number of Segments
3
Operating Supply Voltage
24V
Output Current
2.3A
Output Voltage
45V
Package Quantity
95
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Topology
Buck-Boost
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3518EFE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3518EFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

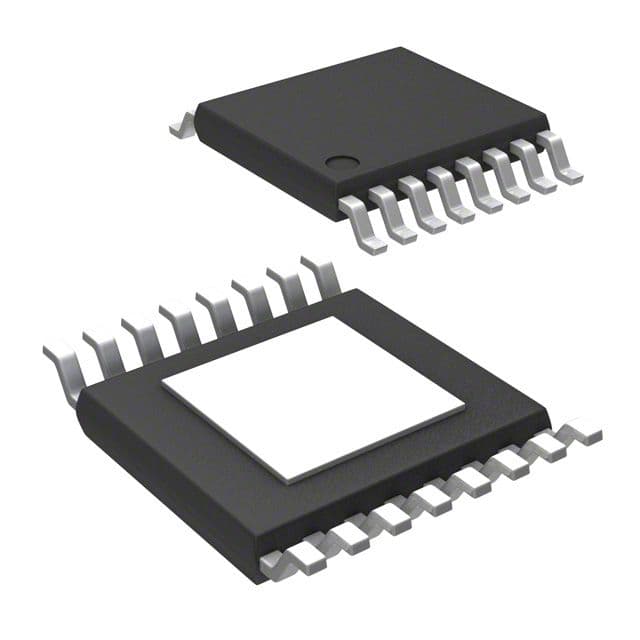

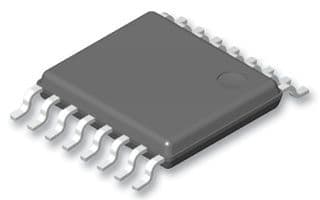

Product Images
