The LT3573IMSE#PBF is a flyback DC/DC controller from Analog Devices, operating over a temperature range of -40°C to 125°C. It has a maximum operating supply voltage of 12V and a maximum output current of 1.25A. The device is packaged in an MSOP package with dimensions of 1.1mm height, 3mm width, and 4.04mm length. The LT3573IMSE#PBF is RoHS compliant and not Reach SVHC compliant.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LT3573IMSE#PBF technical specifications.
General
| Package/Case | MSOP |
| Height | 1.1mm |
| Length | 4.04mm |
| Max Duty Cycle | 52% |
| Max Input Voltage | 40V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.23V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 12V |
| Output Current | 1.25A |
| Output Type | Adjustable |
| Output Voltage | 60V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Flyback |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3573IMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3573IMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

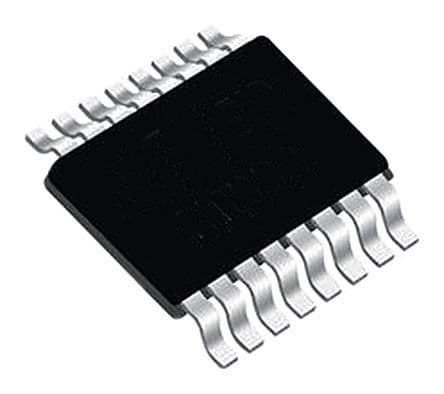

Product Images
