2A, 2-cell battery charger IC with an 8.4V output voltage. Features a wide input voltage range from 9V to 32V and a maximum supply voltage of 32V. Operates efficiently across a temperature range of -40°C to 85°C. Packaged in a DFN format, this RoHS compliant component is supplied in rail/tube packaging.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3650EDD-8.4#PBF technical specifications.
General
Package/Case
DFN
Max Charge Current
2A
Max Input Voltage
32V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
32V
Min Supply Voltage
9V
Number of Cells
2
Output Voltage
8.4V
Package Quantity
121
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3650EDD-8.4#PBF Datasheet
Download the complete datasheet for Analog Devices LT3650EDD-8.4#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

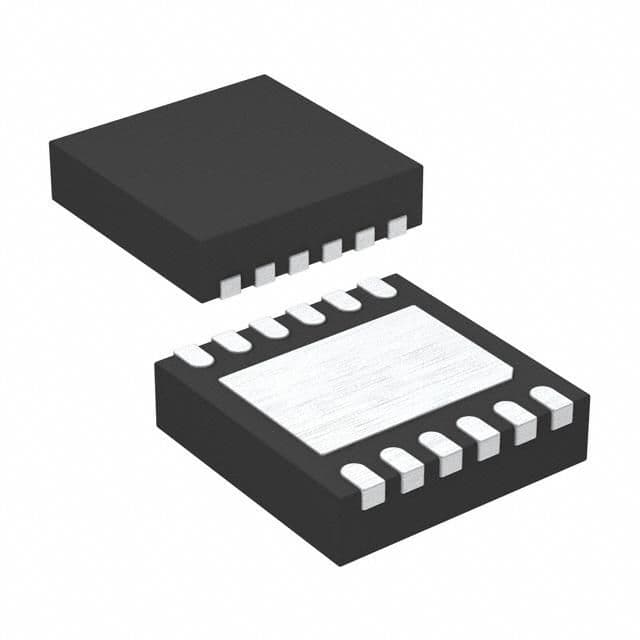

Product Images
