Adjustable 2A DC/DC buck controller, surface mount DFN package, featuring a 3.6V to 34V input voltage range and a 1.265V to 20V adjustable output voltage. This single-output integrated circuit operates with a maximum output current of 2A and a switching frequency up to 2MHz. Designed for efficient power management, it offers a wide operating temperature range from -40°C to 85°C.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LT3681EDE#PBF technical specifications.
General
Package/Case
DFN
Height
0.75mm
Length
4mm
Max Input Voltage
34V
Min Input Voltage
3.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
20V
Min Output Voltage
1.265V
Mount
Surface Mount
Number of Outputs
1
Output Current
2A
Output Type
Adjustable
Output Voltage
20V
Package Quantity
91
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3681EDE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3681EDE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

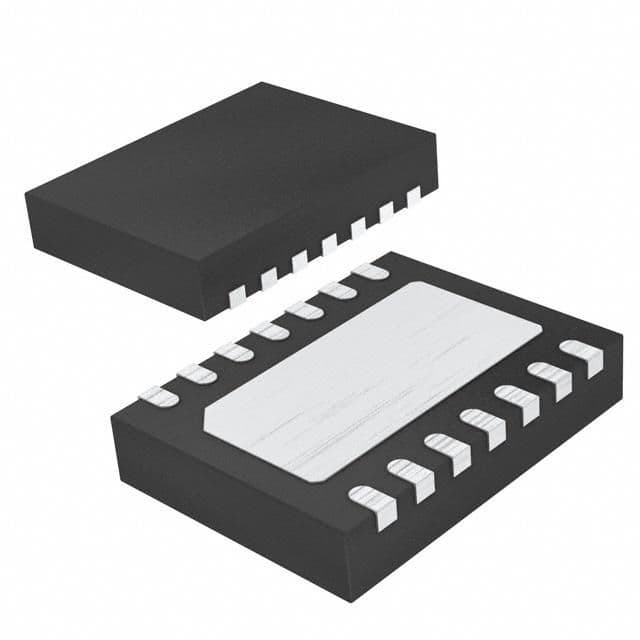

Product Images
