Adjustable 4A synchronous buck converter IC, featuring a wide 3.9V to 36V input voltage range and up to 20V adjustable output voltage. This power management IC delivers a maximum output current of 4A, with a minimum output voltage of 800mV. Housed in a compact 4mm x 6mm x 0.7mm QFN package, it operates efficiently across a broad temperature range of -40°C to 125°C.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LT3690EUFE#PBF technical specifications.
General
Package/Case
QFN
Height
0.7mm
Length
4mm
Max Input Voltage
36V
Min Input Voltage
3.9V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
20V
Min Output Voltage
800mV
Number of Outputs
1
Output Current
4A
Output Type
Adjustable
Output Voltage
20V
Package Quantity
61
Packaging
Rail/Tube
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3690EUFE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3690EUFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

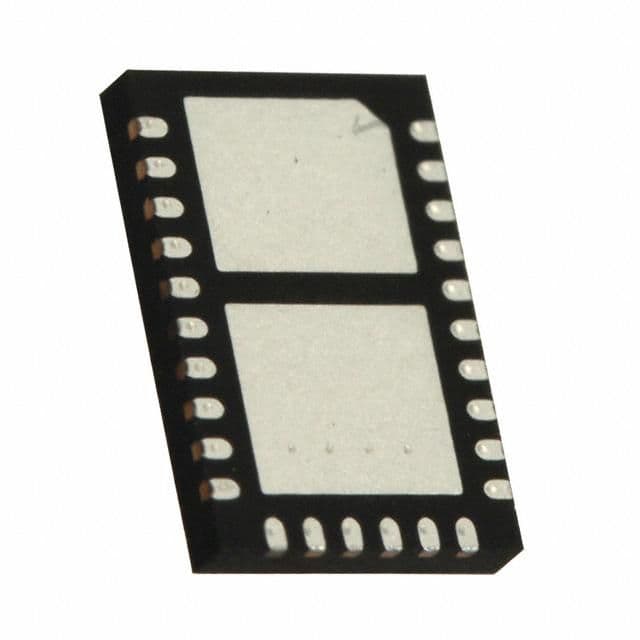

Product Images
