Adjustable 4A synchronous buck converter IC, featuring a 3.9V minimum input voltage and a 20V maximum output voltage. This power management IC operates within a -40°C to 125°C temperature range and is housed in a QFN EP package. Designed with a single adjustable output, it delivers up to 4A of current. RoHS compliant and available in rail/tube packaging.
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LT3690IUFE#PBF technical specifications.
General
Package/Case
QFN EP
Min Input Voltage
3.9V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
1
Output Current
4A
Output Type
Adjustable
Output Voltage
20V
Package Quantity
61
Packaging
Rail/Tube
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3690IUFE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3690IUFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

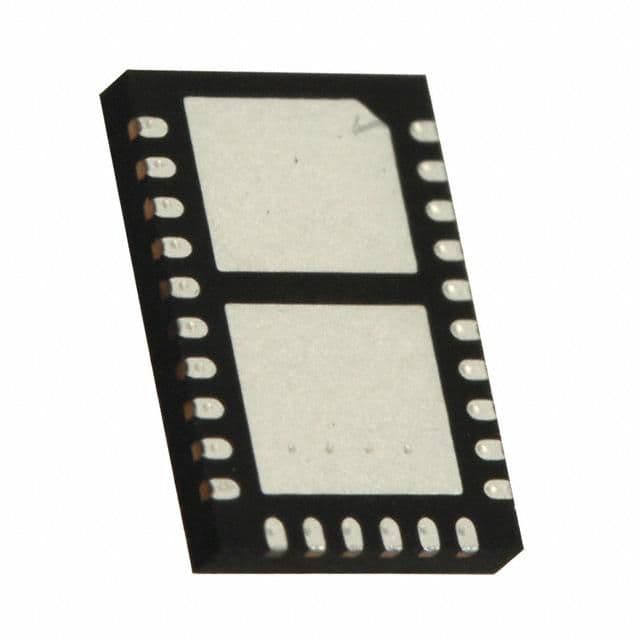

Product Images
