Frequency1MHz
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LT3755EMSE#PBF technical specifications.
General
Package/Case
MSOP
Frequency
1MHz
Height
0.86mm
Lead Free
Lead Free
Length
4.04mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
75V
Max Supply Voltage
40V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Output Current
1A
Output Voltage
75V
Package Quantity
37
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Topology
Flyback, SEPIC, Buck-Boost
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3755EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3755EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

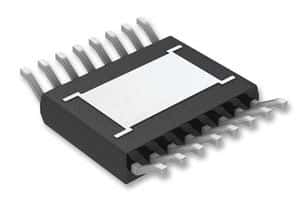

Product Images
