General purpose operational amplifier featuring a 3kHz gain bandwidth product and 2kHz unity gain bandwidth. This single-circuit, bipolar technology amplifier offers a low operating supply current of 1.25µA and a high voltage gain of 113.98dB. It supports a wide supply voltage range from 1.6V to 16V, with a maximum dual supply voltage of 8V. Key performance metrics include a 300µV input offset voltage, 40pA input bias current, 69dB CMRR, and 80dB PSRR. The surface mount DFN EP package is supplied on tape and reel.
PackageDFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LT6003CDC#TRPBF technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | DFN EP |
| Common Mode Rejection Ratio | 69dB |
| Gain Bandwidth Product | 3kHz |
| Input Bias Current | 40pA |
| Input Offset Voltage (Vos) | 300uV |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 800mV |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.25uA |
| Output Current per Channel | 9mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| RoHS Compliant | Yes |
| Slew Rate | 0.0013V/µs |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 2kHz |
| Voltage Gain | 113.98dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT6003CDC#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT6003CDC#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

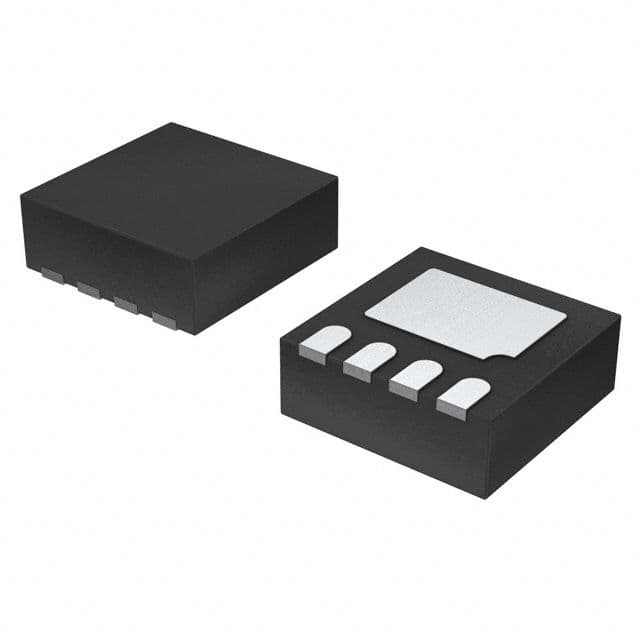

Product Images
