Dual-channel, general-purpose operational amplifier with a 60MHz gain bandwidth product and 55MHz unity gain bandwidth. Features Rail-to-Rail output, 1.15mA operating supply current, and 55mA output current per channel. Offers a wide operating supply voltage range from 3V to 12.6V (single) or ±1.5V to ±6.3V (dual). Housed in a lead-free, 8-pin SOIC package with a 350µV input offset voltage and 3µA input bias current. Achieves 90dB common mode rejection ratio and 90dB power supply rejection ratio.
PackageSOIC
Quick Jump:
Technical Specifications
Analog Devices LT6234CS8#PBF technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
55MHz
Package/Case
SOIC
Common Mode Rejection Ratio
90dB
Dual Supply Voltage
5V
Gain Bandwidth Product
60MHz
Height
1.48mm
Input Bias Current
3uA
Input Offset Voltage (Vos)
350uV
Lead Free
Lead Free
Length
5mm
Max Dual Supply Voltage
6.3V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12.6V
Min Supply Voltage
3V
Nominal Gain Bandwidth Product
60MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.15mA
Operating Supply Voltage
12V
Output Current per Channel
55mA
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
90dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
17V/µs
Unity Gain Bandwidth Product
55MHz
Voltage Gain
102.92dB
Width
3.99mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT6234CS8#PBF Datasheet
Download the complete datasheet for Analog Devices LT6234CS8#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

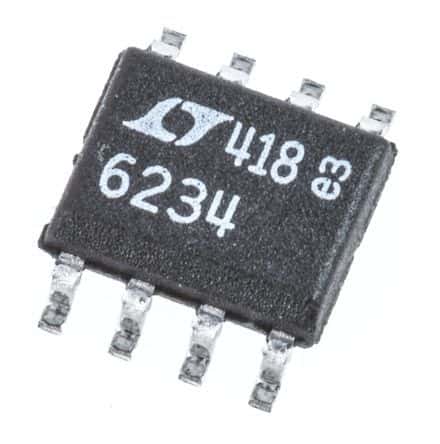

Product Images
