PackageDFN EP
Current11uA
Quick Jump:
Technical Specifications
Analog Devices LT6700IDCB-3#TRMPBF technical specifications.
General
Package/Case
DFN EP
Hysteresis
11.5mV
Input Bias Current
10nA
Input Offset Voltage (Vos)
6mV
Lead Free
Contains Lead
Max Input Current
10nA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
1.4V
Number of Channels
2
Number of Elements
2
Package Quantity
500
Packaging
Tape and Reel
Propagation Delay
29us
Quiescent Current
17uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Over-The-Top®
Supply Current
11uA
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT6700IDCB-3#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT6700IDCB-3#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

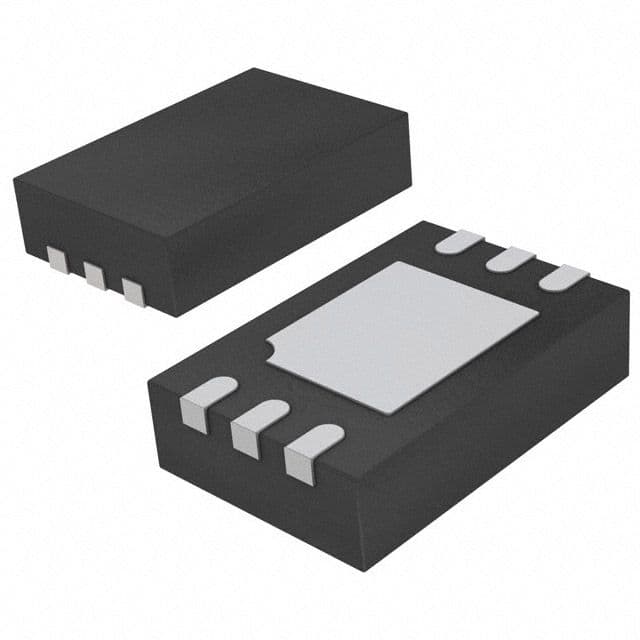

Product Images
