Switched capacitor voltage converter IC featuring a DIP package. Operates with input voltages from 2V to 18V, delivering a single negative output voltage ranging from -2V to -18V. Supports a maximum output current of 50mA and a maximum power dissipation of 500mW. This component functions at a frequency of 10kHz and is RoHS compliant.
Frequency10kHz
PackageDIP
Quick Jump:
Technical Specifications
Analog Devices LTC1144CN8#PBF technical specifications.
General
Package/Case
DIP
Frequency
10kHz
Height
3.3mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
18V
Min Input Voltage
2V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
50mA
Max Output Voltage
-2V
Min Output Voltage
-18V
Max Power Dissipation
500mW
Max Supply Voltage
18V
Min Supply Voltage
2V
Number of Outputs
1
Operating Supply Current
1.1mA
Output Current
50mA
Output Voltage
-2V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Width
6.48mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC1144CN8#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1144CN8#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

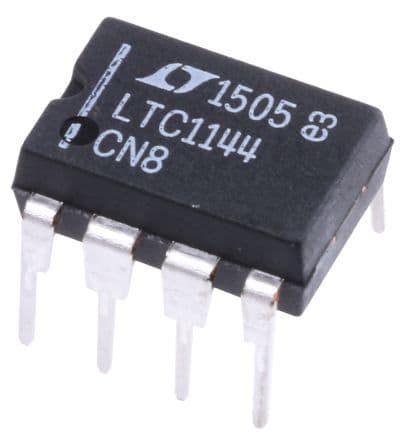

Product Images
