The LTC1264CSW#TRPBF is a universal filter IC from Analog Devices, available in a SOIC package. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. This 4-channel filter IC is suitable for various applications, including those requiring a lead-free solution. The device has a maximum supply voltage of 16V and a nominal supply current of 14mA.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC1264CSW#TRPBF technical specifications.
General
| Package/Case | SOIC |
| Filter Type | UNIVERSAL |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 2.375V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Nominal Supply Current | 14mA |
| Number of Circuits | 4 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Type | Active |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC1264CSW#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC1264CSW#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

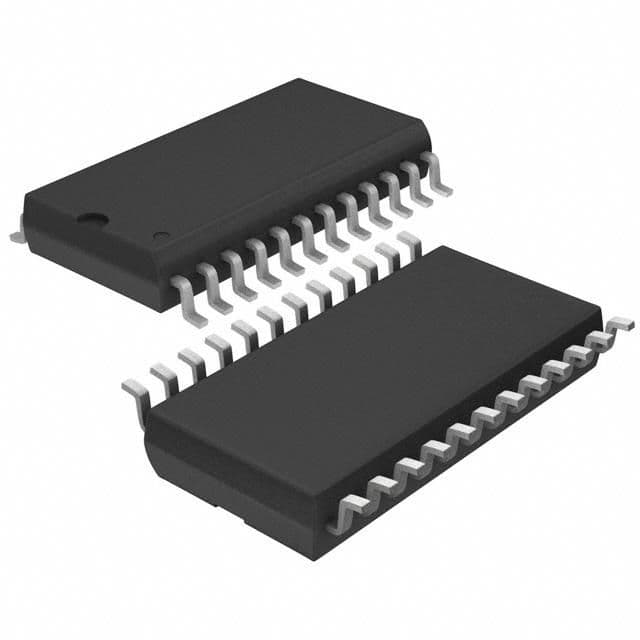

Product Images
