Dual operational amplifier featuring 3MHz gain bandwidth product and 2V/µs slew rate. Achieves 120dB common mode rejection ratio and 120dB power supply rejection ratio. Offers low input offset voltage of 0.5µV and 3µV maximum offset. Operates from a wide dual supply voltage range of 1.35V to 5.5V, with a maximum single supply of 11V. Packaged in MSOP with 2 channels.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC2051HVCMS8 technical specifications.
General
Package/Case
MSOP
Common Mode Rejection Ratio
120dB
Dual Supply Voltage
5V
Gain Bandwidth Product
3MHz
Input Bias Current
90pA
Input Offset Voltage (Vos)
0.5uV
Lead Free
Contains Lead
Max Dual Supply Voltage
5.5V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
11V
Min Supply Voltage
2.7V
Nominal Gain Bandwidth Product
3MHz
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Package Quantity
50
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
120dB
RoHS Compliant
No
Slew Rate
2V/µs
Unity Gain Bandwidth Product
3MHz
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices LTC2051HVCMS8 Datasheet
Download the complete datasheet for Analog Devices LTC2051HVCMS8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

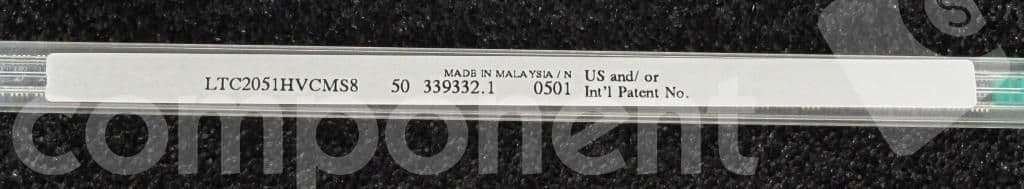

Product Images
