Analog Devices
LTC2337IMS-18#PBF
LINEAR TECHNOLOGY LTC2337IMS-18#PBF Analogue to Digital Converter, 18 bit, 500 kSPS, Single, 4.75 V, 5.25 V, MSOP
PackageMSOP
Current7mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2337IMS-18#PBF technical specifications.
General
| Package/Case | MSOP |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | SPI |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 18 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 42.5mW |
| Reach SVHC Compliant | No |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 500KS/s |
| Supply Current | 7mA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2337IMS-18#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2337IMS-18#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

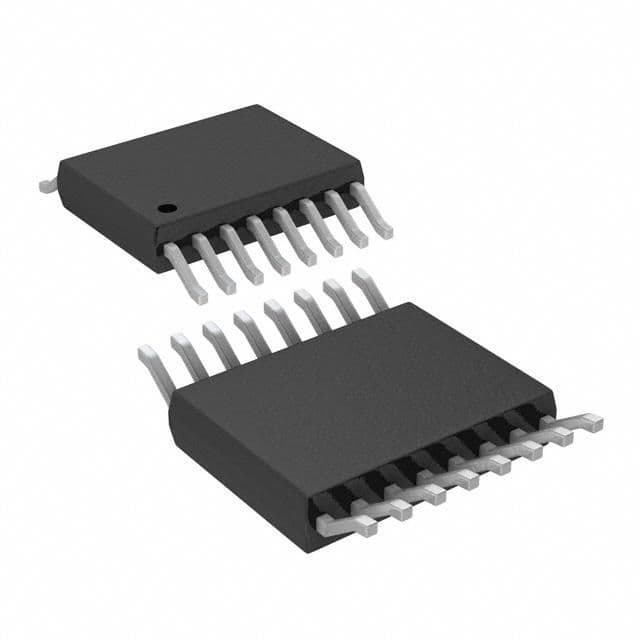

Product Images
