18-bit Analog-to-Digital Converter (ADC) with a 250 kSPS sampling rate. Features a single channel and operates from a 2.375V to 2.625V supply voltage. Offers SPI serial interface and is housed in an MSOP package for surface mounting. This RoHS compliant component has a maximum power dissipation of 4.25mW and an operating temperature range of 0°C to 70°C.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2376CMS-18#PBF technical specifications.
General
Package/Case
MSOP
Interface
SPI, Serial
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
4.25mW
Max Supply Voltage
2.625V
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Bits
18
Number of Converters
1
Package Quantity
37
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
18b
RoHS Compliant
Yes
Sampling Rate
250000S/s
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2376CMS-18#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2376CMS-18#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

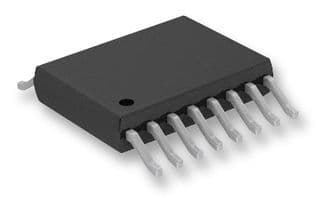

Product Images
