24-bit, single-channel delta-sigma analog-to-digital converter (ADC) with a 7.5 S/s sampling rate. Features a serial SPI interface and operates from a 2.7V to 5.5V single supply. Packaged in a 28-pin SSOP for surface mounting, this RoHS compliant component offers bipolar input polarity and a maximum operating temperature of 85°C.
PackageSSOP
Current200uA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2418IGN#PBF technical specifications.
General
Package/Case
SSOP
Interface
SPI, Serial
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
24
Number of Converters
1
Number of Elements
1
Package Quantity
49
Packaging
Rail/Tube
Polarity
Bipolar
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
7.5S/s
Supply Current
200uA
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2418IGN#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2418IGN#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

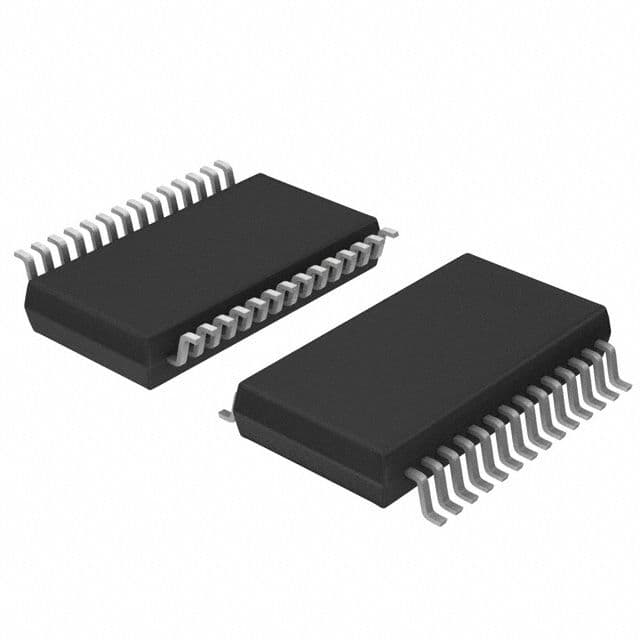

Product Images
