24-bit, 8 kS/s delta-sigma Analog-to-Digital Converter (ADC) with a single channel. Features 1 LSB differential nonlinearity and a bipolar input polarity. Operates from a single 4.5V to 5.5V supply with a typical 5V and 8mA supply current. Serial SPI interface for data transfer. Packaged in a 38-pin QFN with dimensions of 7mm x 5mm x 0.75mm for surface mounting. RoHS compliant and operates within a -40°C to 85°C temperature range.
PackageQFN
Current8mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2448IUHF#PBF technical specifications.
General
Package/Case
QFN
Converter Type
GENERAL PURPOSE
Differential Nonlinearity
1LSB
Height
0.75mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
40mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
24
Number of Converters
1
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
52
Packaging
Rail/Tube
Polarity
Bipolar
Power Dissipation
40mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
8KS/s
Supply Current
8mA
Supply Type
Single
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2448IUHF#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2448IUHF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

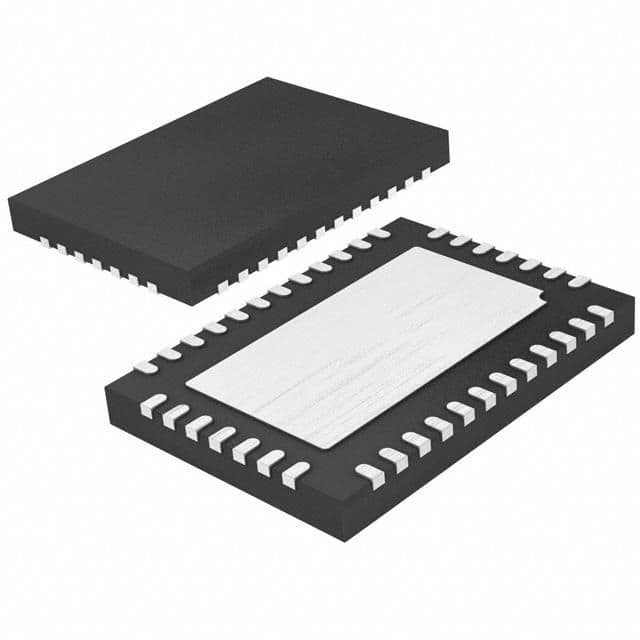

Product Images
