Fuel/gas gauge IC for single-cell Li-ion batteries. Features a 2.7V to 5.5V input and supply voltage range. Operates within 0°C to 70°C. Packaged in a 2mm DFN EP, this RoHS compliant component is supplied on tape and reel.
PackageDFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC2942CDCB#TRMPBF technical specifications.
General
Package/Case
DFN EP
Lead Free
Lead Free
Length
2mm
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Cells
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2942CDCB#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC2942CDCB#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

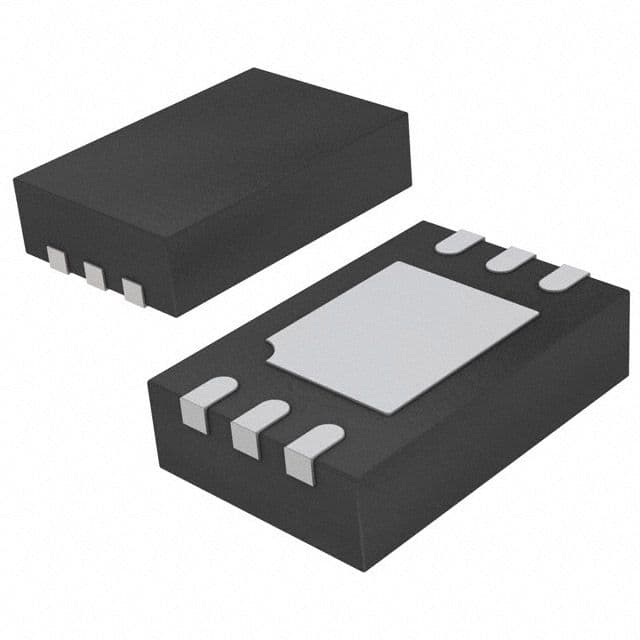

Product Images
