Buck-Boost DC/DC controller and regulator featuring a single, positive, adjustable output up to 5.5V and 3A. Operates from 1.73V to 5.5V input voltage, with a maximum operating temperature of 125°C. Includes synchronous rectification and is RoHS compliant, packaged in a QFN surface mount configuration.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3128EUFD#PBF technical specifications.
General
Package/Case
QFN
Max Input Voltage
5.5V
Min Input Voltage
1.73V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
5.5V
Min Output Voltage
1.8V
Max Supply Voltage
5.5V
Min Supply Voltage
1.73V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3128EUFD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3128EUFD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

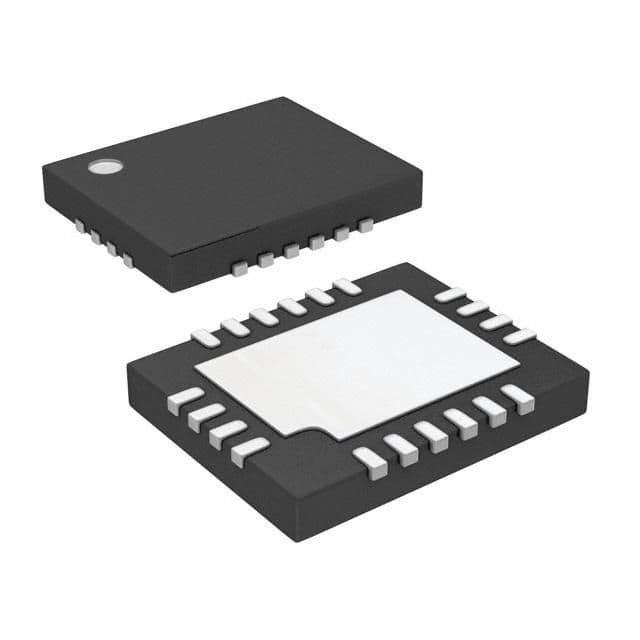

Product Images
