Programmable buck-boost DC/DC controller with 200mA output current. Features a 1.92V to 15V input voltage range and a 2.5V to 15.5V output voltage range. Operates from -40°C to 125°C in a QFN package. Includes synchronous rectification and a positive output configuration. Supplied on tape and reel, RoHS compliant.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC3129EUD-1#TRPBF technical specifications.
General
Package/Case
QFN
Max Input Voltage
15V
Min Input Voltage
1.92V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
15.5V
Min Output Voltage
2.5V
Number of Outputs
1
Output Configuration
Positive
Output Current
200mA
Output Voltage
1.4V
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3129EUD-1#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3129EUD-1#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

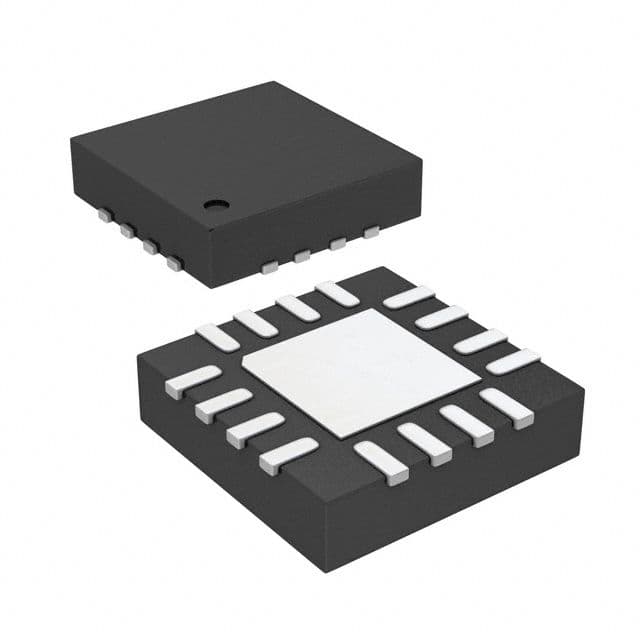

Product Images
