Technical Specifications
Analog Devices LTC3209EUF-2#PBF technical specifications.
General
Package/Case
QFN EP
Efficiency
94%
Frequency
850kHz
Min Input Voltage
2.9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
3.2V
Max Supply Voltage
4.5V
Min Supply Voltage
2.9V
Number of Outputs
8
Number of Segments
8
Operating Supply Voltage
3.3V
Output Current
600mA
Package Quantity
91
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Topology
Charge Pump
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3209EUF-2#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3209EUF-2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

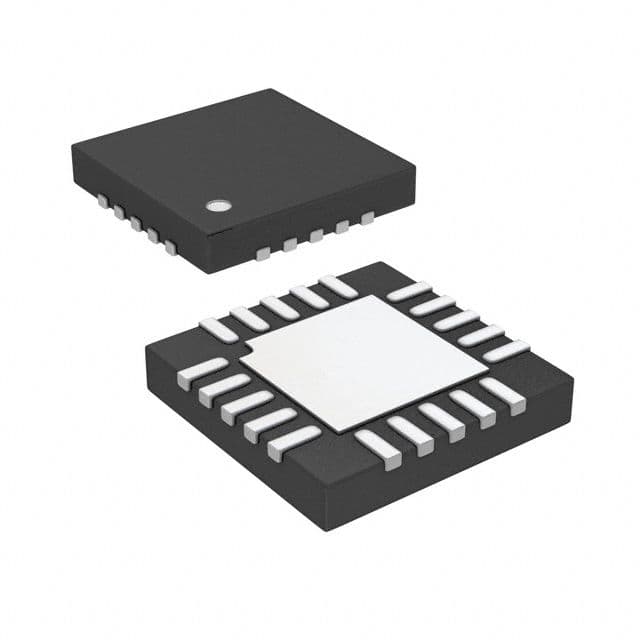

Product Images
