3-output, 5.1V output voltage LED driver IC utilizing a charge pump topology. Operates with a minimum input voltage of 2.7V and a maximum supply voltage of 5.5V, featuring a 1.275MHz switching frequency. This RoHS compliant component is housed in a DFN package, suitable for applications requiring precise current regulation up to 25mA per output, with an operating temperature range of -40°C to 85°C.
Frequency1.275MHz
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3212EDDB#TRPBF technical specifications.
General
Package/Case
DFN
Frequency
1.275MHz
Lead Free
Lead Free
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Outputs
3
Number of Segments
3
Output Voltage
5.1V
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Topology
Charge Pump
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3212EDDB#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3212EDDB#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

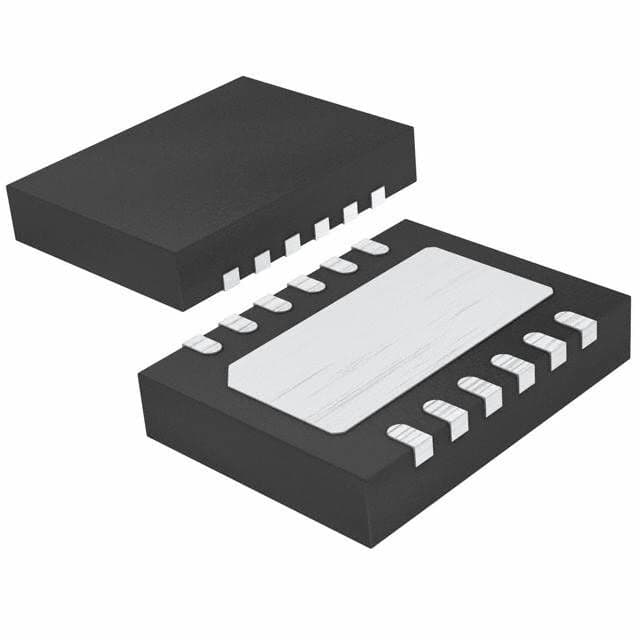

Product Images
