Automotive-grade charge pump inverter IC offering a wide input voltage range of 4.5V to 32V. Delivers a fixed negative output voltage with up to 100mA maximum output current. Features two outputs and operates with a low 100µA supply current. Packaged in a 14-pin DFN with a maximum operating temperature of 125°C. RoHS compliant and lead-free.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3260EDE#PBF technical specifications.
General
Package/Case
DFN
Lead Free
Lead Free
Max Input Voltage
32V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Supply Voltage
32V
Min Supply Voltage
4.5V
Number of Outputs
2
Operating Supply Current
100uA
Output Current
100mA
Output Type
Fixed
Package Quantity
91
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Charge Pump
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3260EDE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3260EDE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

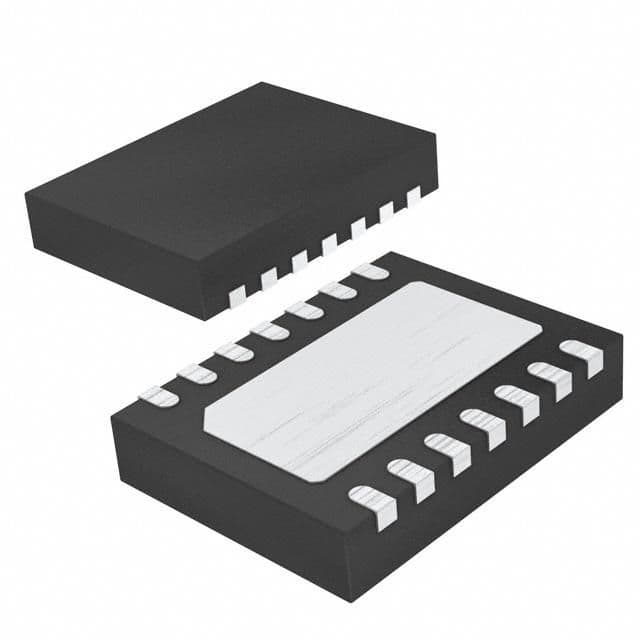

Product Images
