Dual-output charge pump in a 16-pin MSOP package, capable of generating negative voltages from -4.5V to -32V. Features a maximum output current of 100mA per output and a low operating supply current of 100µA. Input voltage range is 4.5V to 32V, with a maximum supply voltage of 32V. Operating temperature range spans from -40°C to 125°C. Offers fixed and adjustable output types.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3260IMSE#PBF technical specifications.
General
Package/Case
MSOP
Lead Free
Lead Free
Max Input Voltage
32V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Supply Voltage
32V
Min Supply Voltage
4.5V
Number of Outputs
2
Operating Supply Current
100uA
Output Current
100mA
Output Type
Fixed, Adjustable
Package Quantity
37
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Charge Pump
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3260IMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3260IMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

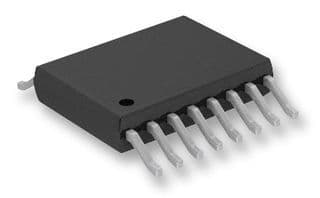

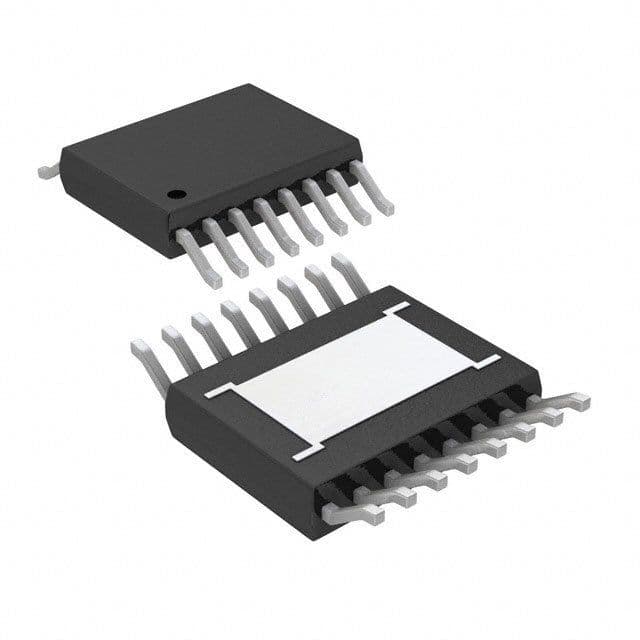

Product Images
