Automotive-grade 100mA charge pump inverter IC, adjustable output voltage from -4.5V to -32V. Features a wide input voltage range of 4.5V to 32V, with a low operating supply current of 60µA. Operates across an extended temperature range of -40°C to 125°C. This single-channel, single-output device is supplied in a 12-pin MSOP package, RoHS compliant.
Quick Jump:
Technical Specifications
Analog Devices LTC3261EMSE#PBF technical specifications.
General
Max Input Voltage
32V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
-4.5V
Min Output Voltage
-32V
Max Supply Voltage
32V
Min Supply Voltage
4.5V
Number of Channels
1
Number of Outputs
1
Operating Supply Current
60uA
Output Current
100mA
Output Type
Adjustable
Output Voltage
-32V
Package Quantity
37
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3261EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3261EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

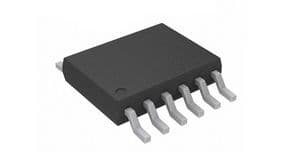

Product Images
