Analog Devices
LTC3547EDDB#TRMPBF
2-Output 300mA DC/DC Controller, 2.5-5.5V In, 5.5V Out, 96% Eff, DFN
Dual synchronous buck converter IC, adjustable output voltage up to 5.5V, delivering 300mA per channel. Features high efficiency up to 96% with a wide input voltage range of 2.5V to 5.5V. Operates across a temperature range of -40°C to 85°C, housed in a DFN package. RoHS compliant and lead-free.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3547EDDB#TRMPBF technical specifications.
General
Package/Case
DFN
Current - Output 1
300mA
Current - Output 2
300mA
Efficiency
96%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Outputs
2
Output Current
300mA
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Voltage - Output 1
5.5V
Voltage - Output 2
5.5V
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3547EDDB#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC3547EDDB#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

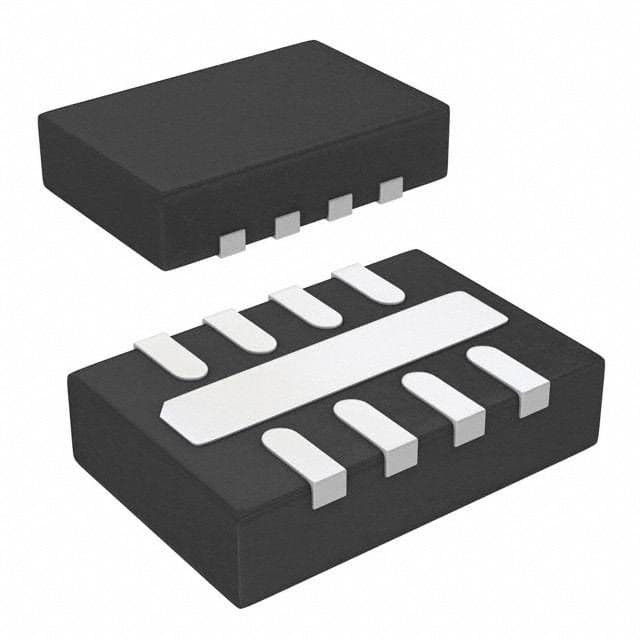

Product Images
