The LTC3553EUD-2#TRPBF is a dual-cell PowerPath IC from Analog Devices. It operates over a temperature range of -40°C to 85°C and is packaged in a QFN package with a length of 3mm. The device has a maximum input voltage of 5.5V and a minimum input voltage of 4.35V. It is RoHS compliant and available in quantities of 2500 per reel. The LTC3553EUD-2#TRPBF is suitable for battery management applications.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC3553EUD-2#TRPBF technical specifications.
General
| Package/Case | QFN |
| Length | 3mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.35V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Cells | 1 |
| Number of Outputs | 2 |
| Operating Supply Current | 12uA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | PowerPath™ |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3553EUD-2#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3553EUD-2#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

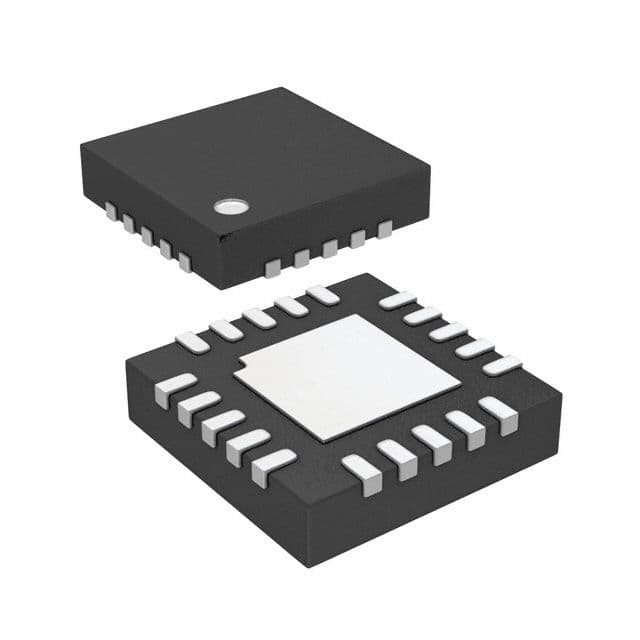

Product Images
