Monolithic synchronous step-down converter with 500mA output current and adjustable output voltage up to 76V. Features a wide 4V to 76V input voltage range and operates efficiently with a synchronous rectifier. Packaged in a SOP for surface mount applications, this component offers a broad operating temperature range from -40°C to 125°C. Delivered in tape and reel packaging, it is RoHS compliant.
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3630AEMSE#TRPBF technical specifications.
General
Package/Case
SOP
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
1
Output Current
500mA
Output Type
Adjustable
Output Voltage
76V
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3630AEMSE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3630AEMSE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

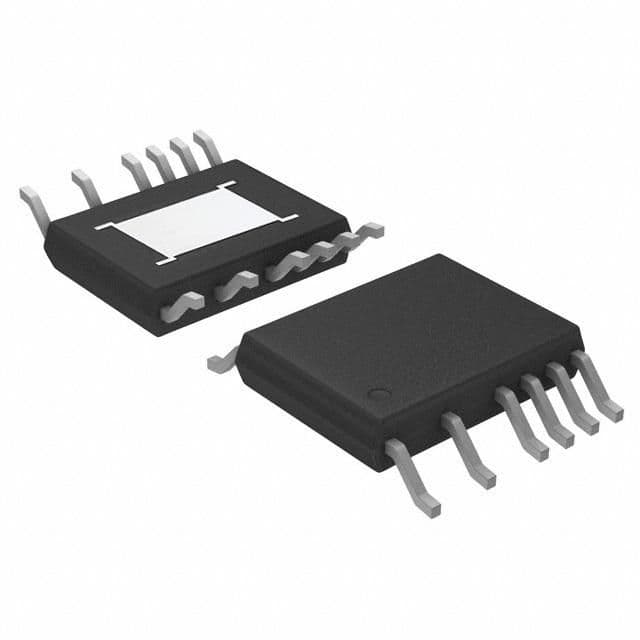

Product Images
