Synchronous buck DC/DC controller with adjustable output voltage from 800mV to 65V. Features a wide 4V to 65V input voltage range and a maximum output current of 500mA. Operates efficiently with a synchronous rectifier, housed in a DFN package. Suitable for applications requiring stable power conversion across a broad temperature range of -40°C to 125°C.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3630EDHC#PBF technical specifications.
General
Package/Case
DFN
Max Input Voltage
65V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
65V
Min Output Voltage
800mV
Number of Outputs
1
Output Current
500mA
Output Type
Adjustable
Output Voltage
65V
Package Quantity
73
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3630EDHC#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3630EDHC#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

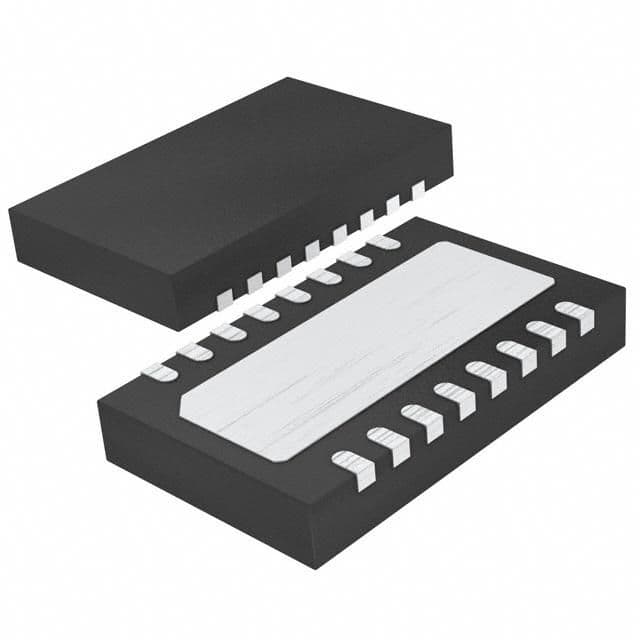

Product Images
