Boost DC/DC controller IC featuring a PolyPhase® topology. Operates with a wide input voltage range of 4.5V to 38V, delivering a configurable output voltage up to 60V. Achieves a maximum switching frequency of 850kHz with a 100% duty cycle capability. Housed in a 28-pin SSOP package, this RoHS compliant component is suitable for operation across a broad temperature range from -40°C to 125°C.
Frequency850kHz
PackageSSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3787EGN#PBF technical specifications.
General
Package/Case
SSOP
Duty Cycle
100%
Max Frequency
850kHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
38V
Min Supply Voltage
4.5V
Number of Outputs
1
Output Voltage
60V
Package Quantity
49
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PolyPhase®
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3787EGN#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3787EGN#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

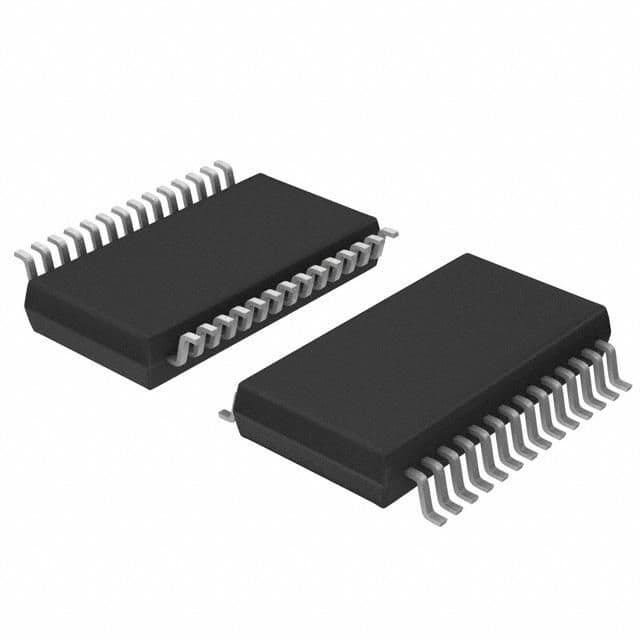

Product Images
