The LTC3850IGN#TRPBF is a dual 100mA DC/DC controller from Analog Devices, featuring a maximum frequency of 860kHz and a maximum operating temperature of 85°C. It is packaged in a 2500-unit tape and reel, with a RoHS compliant design. The device operates within a temperature range of -40°C to 85°C and is not Reach SVHC compliant.
Frequency860kHz
PackageSSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3850IGN#TRPBF technical specifications.
General
| Package/Case | SSOP |
| Duty Cycle | 97.2% |
| Max Frequency | 860kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 2 |
| Output Current | 100mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PolyPhase® |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3850IGN#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3850IGN#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

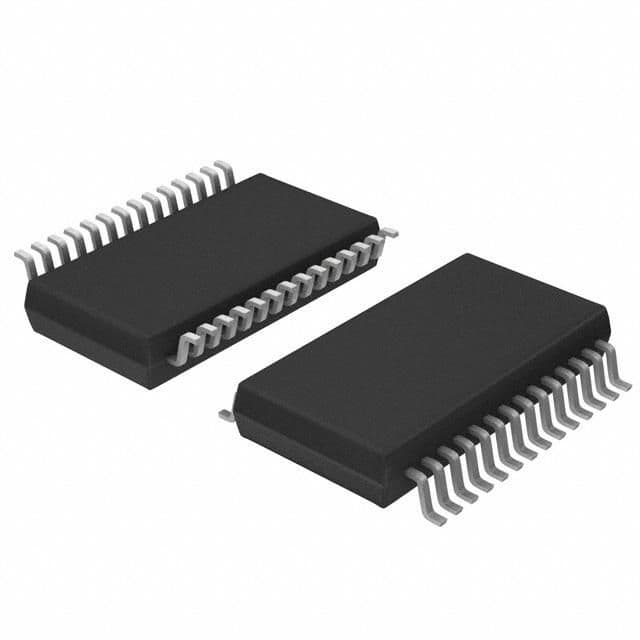

Product Images
