ANALOG DEVICES

LTC4352IDD#PBF

Datasheet

OR Controller, 18V In, 24V Out, 1-Ch, DFN, -40C to 85C

Analog Devices

LTC4352IDD#PBF

Name: LTC4352IDD#PBF Analog Devices
Brand: Analog Devices
SKU: LTC4352IDD#PBF

OR Controller, 18V In, 24V Out, 1-Ch, DFN, -40C to 85C

Automotive OR controller IC featuring a single N-channel driver. Operates with a supply voltage range of 2.9V to 6V, supporting a maximum input voltage of 18V and a maximum output voltage of 24V. Delivers a maximum output current of 200µA with a fixed output voltage of 12V. Designed for surface-mount (SMD/SMT) termination in a DFN package, with a turn-on delay of 250ns and a turn-off delay of 500ms. Operating temperature range spans from -40°C to 85°C.

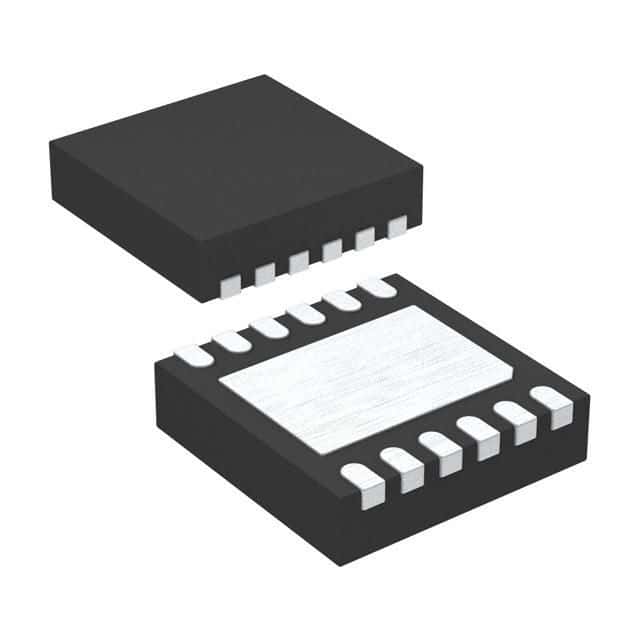

PackageDFN

Quick Jump:

Technical Specifications

Analog Devices LTC4352IDD#PBF technical specifications.

General

Package/Case	DFN
Max Input Voltage	18V
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Output Current	200uA
Max Output Voltage	24V
Max Supply Voltage	6V
Min Supply Voltage	2.9V
Number of Drivers	1
Number of Outputs	1
Output Type	Voltage
Output Voltage	12V
Package Quantity	121
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Termination	SMD/SMT
Turn-Off Delay Time	500ms
Turn-On Delay Time	250ns
