ANALOG DEVICES

LTC4353IDE#PBF

Datasheet

Dual N-Ch OR Controller, 18V, 2 Drivers, DFN EP

Analog Devices

LTC4353IDE#PBF

Name: LTC4353IDE#PBF Analog Devices
Brand: Analog Devices
SKU: LTC4353IDE#PBF

Dual N-Ch OR Controller, 18V, 2 Drivers, DFN EP

Dual N-channel OR controller IC, featuring two drivers and two outputs. Operates within a 3V to 18V supply voltage range, with a maximum operating temperature of 85°C and a minimum of -40°C. This RoHS compliant component has a propagation delay of 1000ns, a turn-on delay time of 400ns, and a turn-off delay time of 1µs. Packaged in a 16-pin DFN EP, it is lead-free.

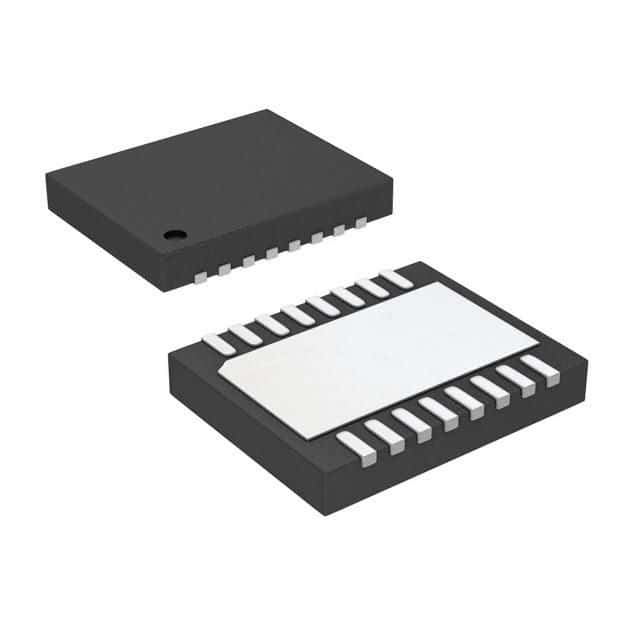

PackageDFN EP

Quick Jump:

Technical Specifications

Analog Devices LTC4353IDE#PBF technical specifications.

General

Package/Case	DFN EP
Lead Free	Lead Free
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	18V
Min Supply Voltage	3V
Number of Drivers	2
Number of Outputs	2
Package Quantity	91
Propagation Delay	1000ns
Reach SVHC Compliant	No
RoHS Compliant	Yes
Turn-Off Delay Time	1us
Turn-On Delay Time	400ns
