ANALOG DEVICES

LTC4359IDCB#TRMPBF

Datasheet

OR Controller, 80V, 180mA, N-Ch, 1-Driver, DFN EP

Analog Devices

LTC4359IDCB#TRMPBF

Name: LTC4359IDCB#TRMPBF Analog Devices
Brand: Analog Devices
SKU: LTC4359IDCB#TRMPBF

OR Controller, 80V, 180mA, N-Ch, 1-Driver, DFN EP

Automotive OR controller IC featuring a single N-channel driver. Operates from 4V to 80V supply voltage with a maximum output current of 180mA. Housed in a 6-pin DFN EP package, this RoHS compliant component offers a turn-off delay time of 500ns. Designed for operation between -40°C and 85°C, it is supplied on tape and reel.

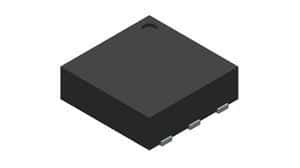

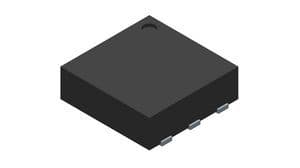

PackageDFN EP

Quick Jump:

Technical Specifications

Analog Devices LTC4359IDCB#TRMPBF technical specifications.

General

Package/Case	DFN EP
Lead Free	Lead Free
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Output Current	180mA
Max Supply Voltage	80V
Min Supply Voltage	4V
Number of Drivers	1
Number of Outputs	1
Package Quantity	1
Packaging	Tape and Reel
RoHS Compliant	Yes
Turn-Off Delay Time	500ns
