Automotive OR controller IC, featuring N-channel single driver and output. Operates from 4V to 80V supply voltage with a maximum output current of 180mA. This component boasts a 500ns turn-off delay time and a low 150uA supply current. Packaged in an 8-pin MSOP, it is lead-free and RoHS compliant, with an operating temperature range of -40°C to 85°C.
PackageMSOP
Current150uA
Quick Jump:
Technical Specifications
Analog Devices LTC4359IMS8#PBF technical specifications.
General
Package/Case
MSOP
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
180mA
Max Supply Voltage
80V
Min Supply Voltage
4V
Number of Drivers
1
Number of Outputs
1
Package Quantity
50
RoHS Compliant
Yes
Supply Current
150uA
Turn-Off Delay Time
500ns
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC4359IMS8#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4359IMS8#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

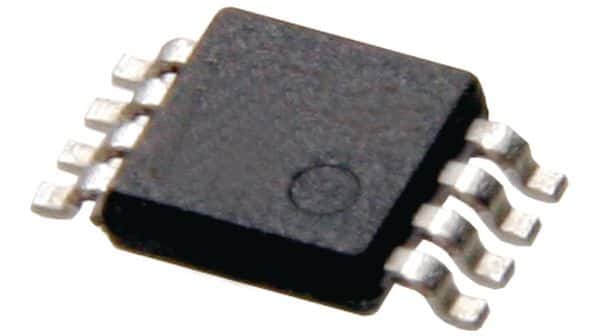

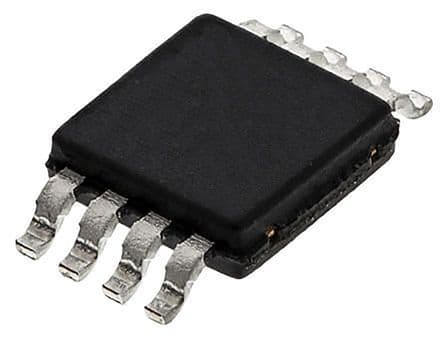

Product Images
