Dual N-Channel OR Controller IC, DFN EP package. Features a 3V to 18V supply voltage range and operates from -40°C to 85°C. Includes two outputs with a 400ns turn-on delay. RoHS compliant and lead-free.
PackageDFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC4370IDE#PBF technical specifications.
General
Package/Case
DFN EP
Lead Free
Lead Free
Length
4mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Number of Outputs
2
Package Quantity
91
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
400ns
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC4370IDE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC4370IDE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

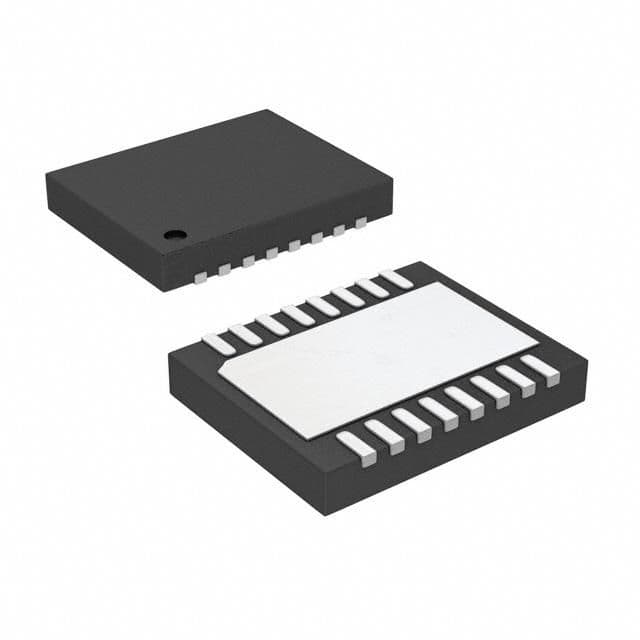

Product Images
