Technical Specifications
Analog Devices LTC6240IS5#PBF technical specifications.
General
Bandwidth
18MHz
Package/Case
TSOT
Common Mode Rejection Ratio
80dB
Input Bias Current
1pA
Input Offset Voltage (Vos)
40uV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.8V
Nominal Gain Bandwidth Product
18MHz
Number of Amplifiers
1
Number of Channels
1
Number of Elements
1
Power Supply Rejection Ratio (PSRR)
80dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
10V/µs
Supply Current
2mA
Technology
CMOS
Unity Gain Bandwidth Product
18MHz
Voltage Gain
124.08dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6240IS5#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6240IS5#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

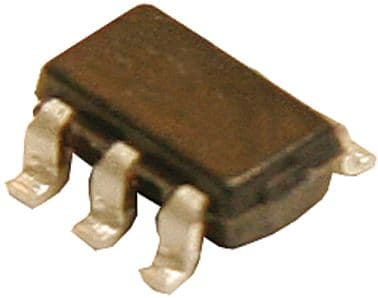

Product Images
