Dual-channel, general-purpose operational amplifier featuring a 720MHz gain bandwidth product and 400MHz -3dB bandwidth. Boasts a high slew rate of 280V/µs and 100mA output current per channel. Operates with dual supply voltages from 1.25V to 2.625V or single supply from 2.5V to 5.25V. Offers excellent common mode rejection of 85dB and power supply rejection of 68dB, with low input bias current of 1.4µA and input offset voltage of 50µV. Packaged in an 8-lead TSOT-23, this bipolar technology amplifier is supplied on tape and reel.
PackageSOT-23-8
Quick Jump:
Technical Specifications
Analog Devices LTC6253ITS8#TRPBF technical specifications.
General
| -3db Bandwidth | 400MHz |
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SOT-23-8 |
| Common Mode Rejection Ratio | 85dB |
| Gain Bandwidth Product | 720MHz |
| Input Bias Current | 1.4uA |
| Input Offset Voltage (Vos) | 50uV |
| Max Dual Supply Voltage | 2.625V |
| Min Dual Supply Voltage | 1.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.5V |
| Nominal Gain Bandwidth Product | 720MHz |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 4.25mA |
| Output Current per Channel | 100mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| RoHS Compliant | Yes |
| Slew Rate | 280V/µs |
| Technology | BIPOLAR |
| Voltage Gain | 95.56dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC6253ITS8#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC6253ITS8#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

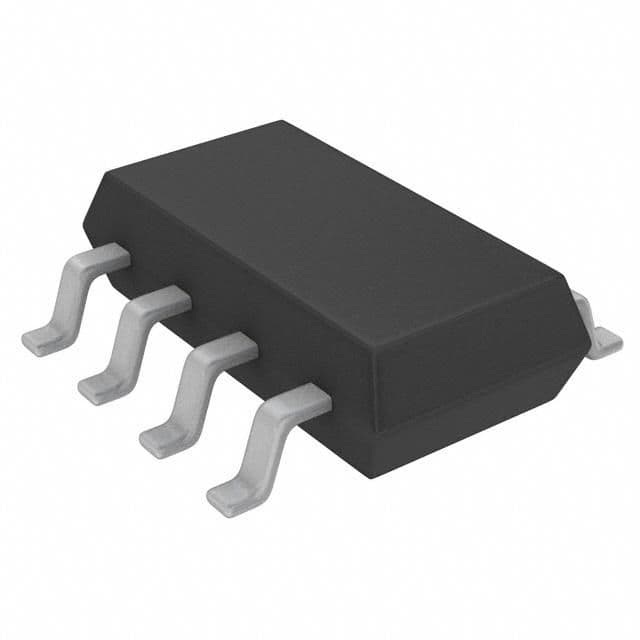

Product Images
