Quad-channel, general-purpose operational amplifier featuring a 720MHz gain bandwidth product and 400MHz -3dB bandwidth. This high-speed amplifier offers a 280V/µs slew rate and 100mA output current per channel. Operating from dual supplies between 1.25V and 2.625V, or single supplies from 2.5V to 5.25V, it boasts a low input bias current of 1.4µA and input offset voltage of 50µV. The device provides excellent signal integrity with 85dB CMRR and 68dB PSRR, housed in a 16-MSOP package.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC6254HMS#TRPBF technical specifications.
General
-3db Bandwidth
400MHz
Amplifier Type
GENERAL PURPOSE
Package/Case
MSOP
Common Mode Rejection Ratio
85dB
Gain Bandwidth Product
720MHz
Input Bias Current
1.4uA
Input Offset Voltage (Vos)
50uV
Max Dual Supply Voltage
2.625V
Min Dual Supply Voltage
1.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
2.5V
Nominal Gain Bandwidth Product
720MHz
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
4.25mA
Output Current per Channel
100mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
68dB
RoHS Compliant
Yes
Slew Rate
280V/µs
Technology
BIPOLAR
Voltage Gain
95.56dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6254HMS#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC6254HMS#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

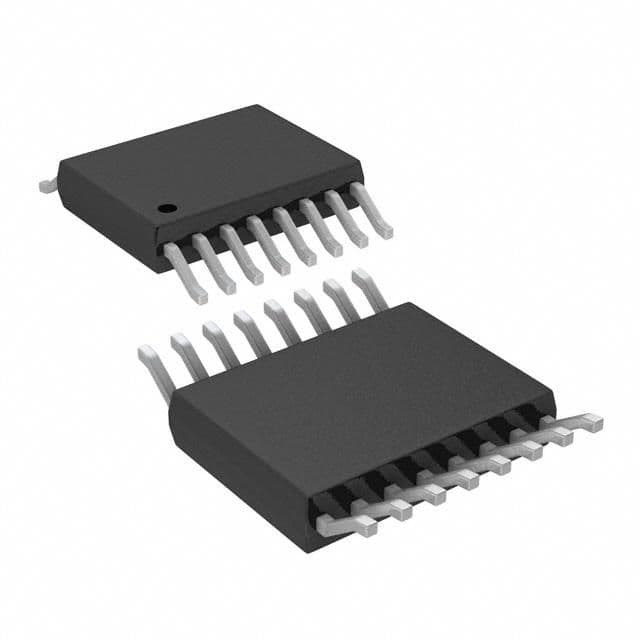

Product Images
