Differential amplifier with a 200MHz bandwidth and 200MHz gain bandwidth product. Features a single amplifier channel, 1.7MΩ input resistance, and 400µV input offset voltage. Operates from a 2.7V to 5.25V supply, consuming a maximum of 12.1mA. Offers 50dB common mode rejection ratio and 60dB power supply rejection ratio. Packaged in a 3mm x 3mm x 0.7mm QFN, suitable for -40°C to 85°C operation.
PackageQFN
Current10.8mA
Quick Jump:
Technical Specifications
Analog Devices LTC6403IUD-1#PBF technical specifications.
General
Bandwidth
200MHz
Package/Case
QFN
Common Mode Rejection Ratio
50dB
Gain Bandwidth Product
200MHz
Height
0.7mm
Input Offset Voltage (Vos)
400uV
Input Resistance
1.7MR
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
12.1mA
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Nominal Gain Bandwidth Product
200MHz
Number of Amplifiers
1
Number of Channels
1
Number of Elements
1
Output Current
60mA
Package Quantity
121
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
60dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
200V/µs
Supply Current
10.8mA
Unity Gain Bandwidth Product
200MHz
Voltage Gain
90dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC6403IUD-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC6403IUD-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

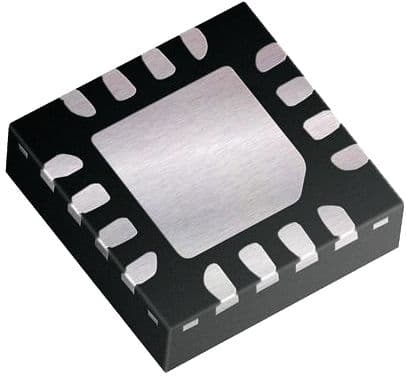

Product Images
