Analog Devices
LTC695CSW
LTC695 - Microprocessor Supervisory Circuits; Package: SO; Pins: 16; Temperature Range: 0°C to 70°C
PackageSOIC W
Current1.5mA
Power500mW
Quick Jump:
Technical Specifications
Analog Devices LTC695CSW technical specifications.
General
Package/Case
SOIC W
Lead Free
Contains Lead
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Reset Threshold Voltage
4.75V
Min Reset Threshold Voltage
4.5V
Max Supply Voltage
5.5V
Min Supply Voltage
4.75V
Number of Elements
1
Number of Voltages Monitored
1
Package Quantity
47
Packaging
Rail/Tube
Power Dissipation
500mW
Radiation Hardening
No
Reset
Active High/Active Low
Reset Timeout
140ms
RoHS Compliant
No
Supply Current
1.5mA
Threshold Voltage
4.65V
Type
Simple Reset/Power-On Reset
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices LTC695CSW Datasheet
Download the complete datasheet for Analog Devices LTC695CSW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

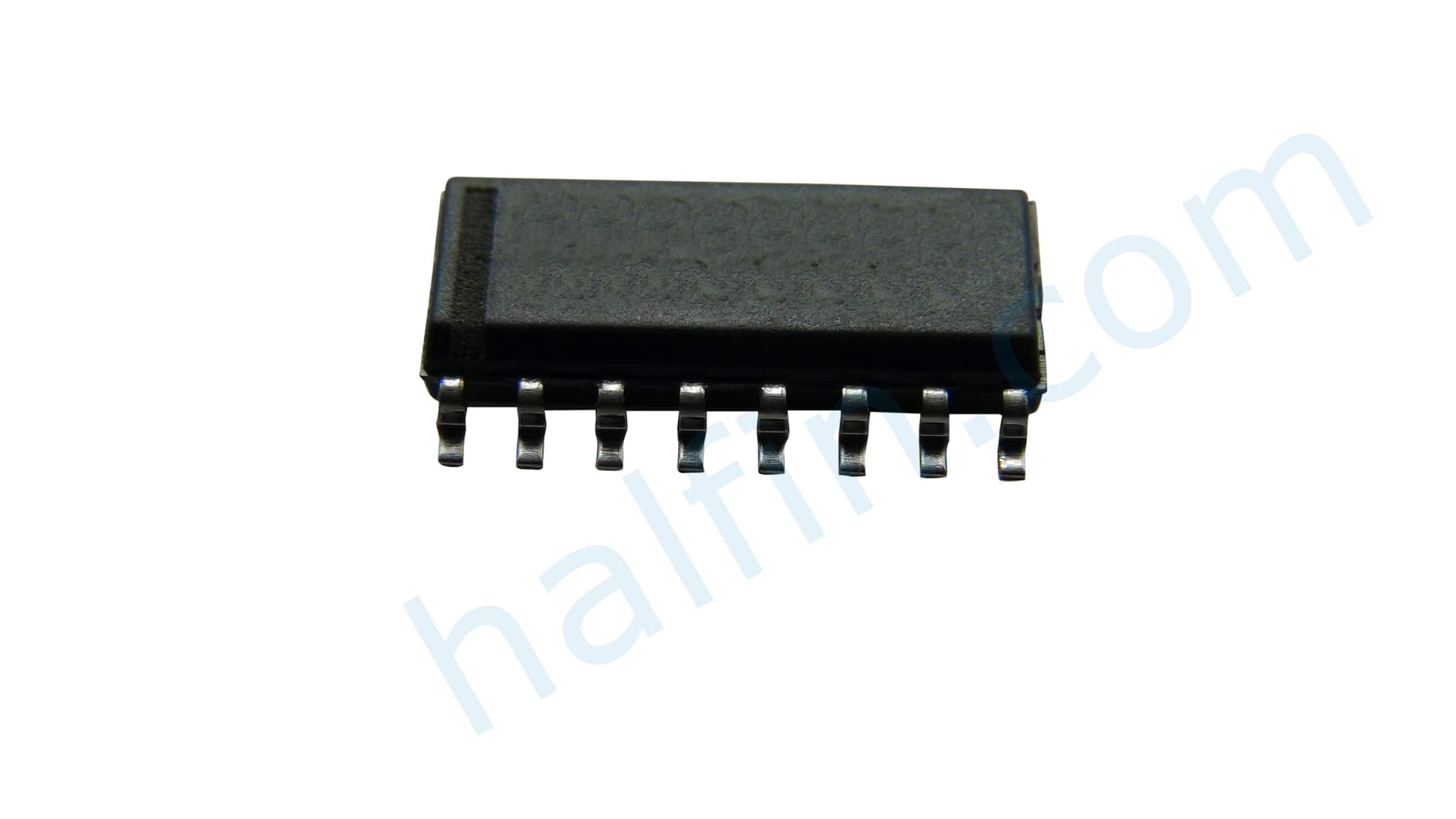

Product Images
