Technical Specifications
Analog Devices LTC7545ACSW#PBF technical specifications.
General
Package/Case
SOIC
Integral Nonlinearity (INL)
0.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
15.75V
Min Supply Voltage
4.75V
Mount
Surface Mount
Nominal Supply Current
2mA
Number of Bits
12
Number of Channels
1
Number of Converters
1
Package Quantity
38
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Settling Time
1us
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC7545ACSW#PBF Datasheet
Download the complete datasheet for Analog Devices LTC7545ACSW#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

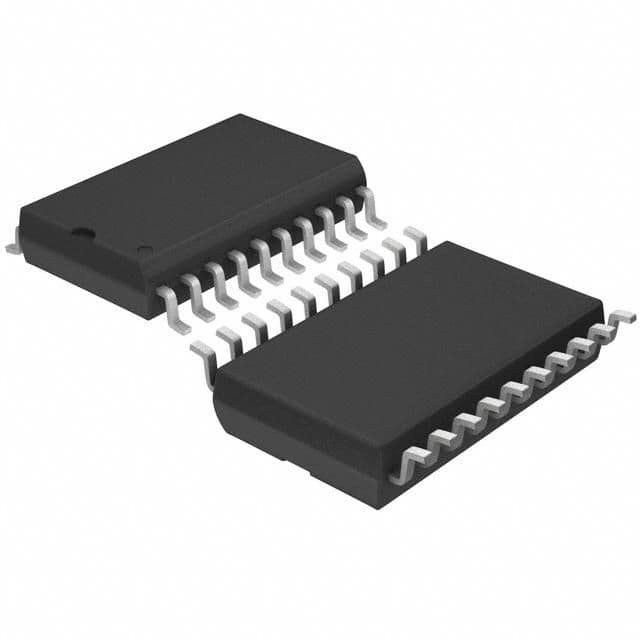

Product Images
