Adjustable DC-DC converter, 10A output current, 800mV to 34V output voltage range. Features 98% efficiency, 300kHz switching frequency, and UVLO, OVP, OCP protection. Operates from 4.5V to 36V input voltage, with a maximum operating temperature of 85°C. This LGA package component is designed for board mount applications.
Frequency300kHz
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM4609EV#PBF technical specifications.
General
Package/Case
LGA
Efficiency
98%
Features
UVLO, OVP, OCP
Frequency
300kHz
Height
0.11inch
Length
0.59inch
Max Input Voltage
36V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Voltage
34V
Min Output Voltage
800mV
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Number of Outputs
1
Operating Supply Current
2.8mA
Output Current
10A
Output Type
Adjustable
Output Voltage
34V
Package Quantity
119
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Termination
SMD/SMT
Topology
Buck-Boost
Voltage - Output 1
34V
Width
0.59inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM4609EV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM4609EV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

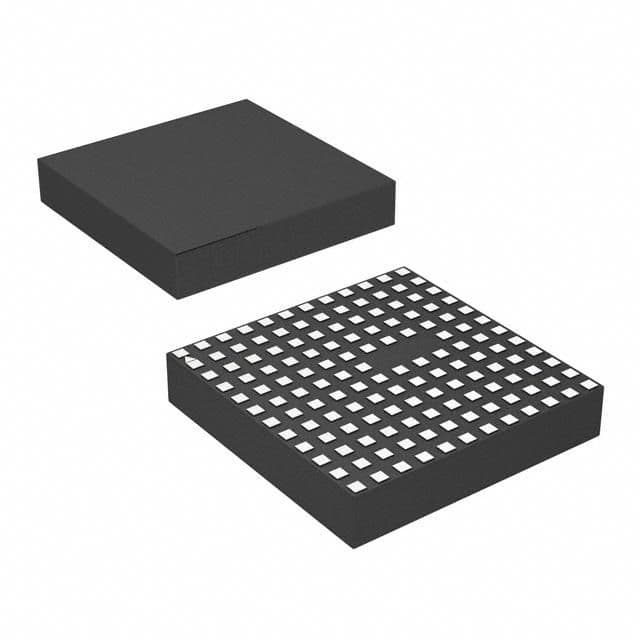

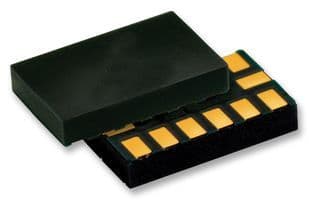

Product Images
