Adjustable DC-DC buck regulator, operating from 4V to 14V input, delivering up to 4A per output. Features four adjustable outputs with a maximum output voltage of 5.5V and a minimum of 600mV. Integrated over-voltage, over-current, and over-temperature protection. Packaged in a 77-pin BGA for surface mounting, with dimensions of 0.59 x 0.35 x 0.19 inches. RoHS compliant and suitable for operation between -40°C and 125°C.
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTM4644EY#PBF technical specifications.
General
Package/Case
BGA
Features
OVP, OCP, OTP
Height
0.19inch
Length
0.59inch
Max Input Voltage
14V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
5.5V
Min Output Voltage
600mV
Mount
Surface Mount
Number of Outputs
4
Output Current
4A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
170
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Voltage - Output 1
5.5V
Voltage - Output 2
5.5V
Voltage - Output 3
5.5V
Width
0.35inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM4644EY#PBF Datasheet
Download the complete datasheet for Analog Devices LTM4644EY#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

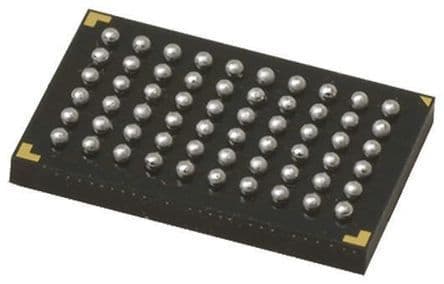

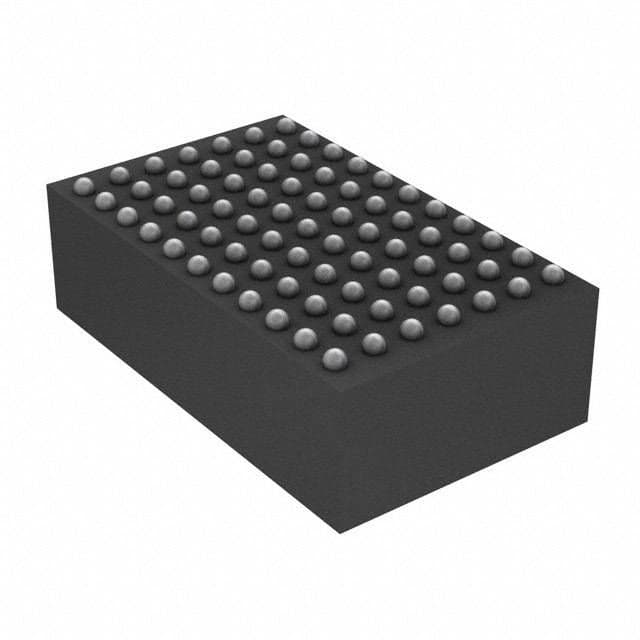

Product Images
