Board mount DC-DC converter with adjustable output voltage from 800mV to 10V and a maximum output current of 2A. Features a wide input voltage range of 3.6V to 36V, a low operating supply current of 85µA, and a single output. Operates across a temperature range of -40°C to 85°C. Packaged in a BGA with dimensions of 0.44" x 0.35" x 0.13". RoHS compliant.
PackageBGA
Quick Jump:
Technical Specifications
Analog Devices LTM8023EY#PBF technical specifications.
General
Package/Case
BGA
Height
0.13inch
Length
0.44inch
Max Input Voltage
36V
Min Input Voltage
3.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
10V
Min Output Voltage
800mV
Number of Outputs
1
Operating Supply Current
85uA
Output Current
2A
Package Quantity
168
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Voltage - Output 1
10V
Width
0.35inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM8023EY#PBF Datasheet
Download the complete datasheet for Analog Devices LTM8023EY#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

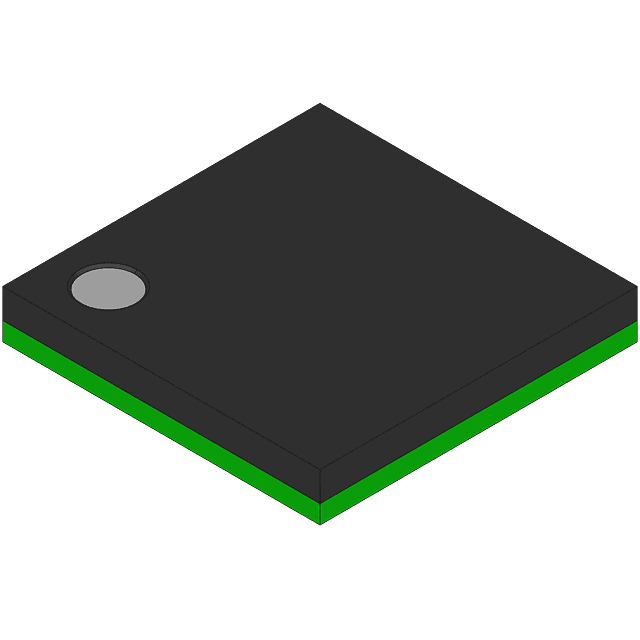

Product Images
